In our webshop you can easily order online technical drawings of Honda MT parts. We supply drawings including the gearbox, cylinder and manifold, carburetor, crankcase and the wiring harness. Order the different parts directly on the basis of the drawing! Honda MT The Honda MT is one of the classic Honda mopeds that you still regularly see on... Read More

In our webshop you can easily order online technical drawings of Honda MT parts. We supply drawings including the gearbox, cylinder and manifold, carburetor, crankcase and the wiring harness. Order the different parts directly on the basis of the drawing!

Honda MT

The Honda MT is one of the classic Honda mopeds that you still regularly see on Dutch roads. Or rather: in the field. Because the MT was developed in the 1970s as a moped for the terrain, as a variant of the MB that was developed as a sporty moped by Honda. The MB and MT therefore share a lot of technology, but there are certainly differences as well. The MT was easier to set up and had, for example, only drum brakes, while the MB was equipped with a disc brake. In addition, original MTs have spoke wheels instead of the 3-spoke rim of the MB.

Technical drawings

Because of their different characters these Honda mopeds have their own group of enthusiasts who keep their valuable possessions on the road and regularly tinker with them. Precisely for that group we have a large amount of technical drawings available at JMPB Parts that help to repair or restore these mopeds. The drawings provide an accurate overview of the structure of each part and the way in which the various components need to be assembled.


Read Less

37 Items

per page
Set Descending Direction
  1. Gear axle Honda MT50

    Starting at €13.95

    Gear axle Honda MT50

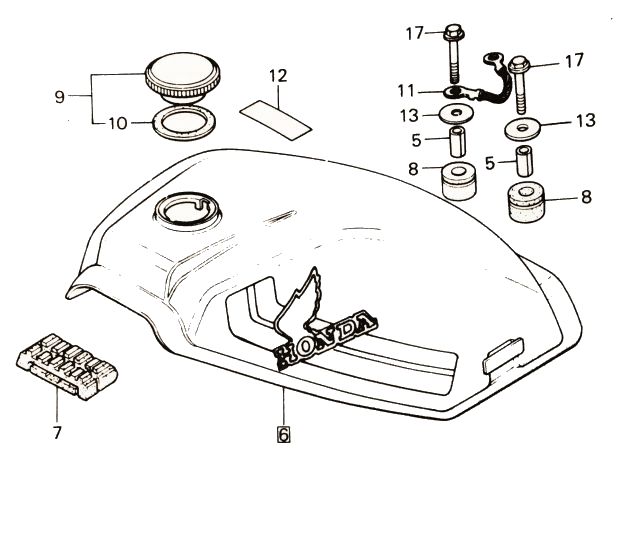

  2. Tank Honda MT50

    Starting at €0.09

    Tank Honda MT50
  3. Exhaust Honda MT50

    Starting at €0.02

    Exhaust Honda MT50
  4. Toolbox Honda MT50

    Starting at €0.25

    Toolbox Honda MT50
