Sachs 50/4 EKF

The gearbox, cylinder and manifold, carburetor, crankcase, and carburetor. Order the various parts using the drawings!

The Sachs 50/4 EKF engine block is one of the most recognizable and reliable two-stroke engines produced by Sachs. This compact 4-speed engine was used in various mopeds and is well-known for its solid construction and easy maintenance. Many enthusiasts still keep these classics in top condition and regularly work on their Sachs engines.

Technical drawings for maintenance and rebuilding

At JMPB Parts , you will find an extensive collection of technical drawings (exploded views) for the Sachs 50/4 EKF engine. These detailed drawings provide an accurate overview of all components, such as:

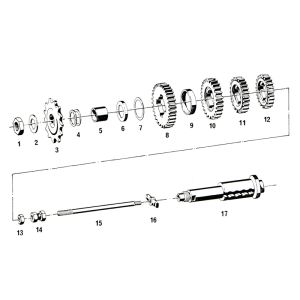

• The gearbox

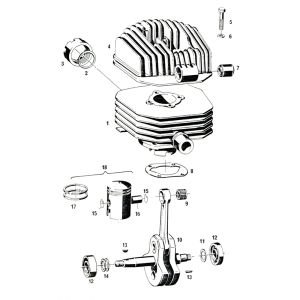

• The cylinder and intake manifold

• The carburettor

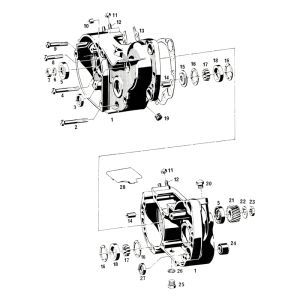

• The crankcase

Each drawing shows exactly how the parts are constructed and how they should be assembled. This makes it much easier to disassemble, inspect and correctly rebuild the engine. Perfect for restoration, repair or a complete overhaul.
