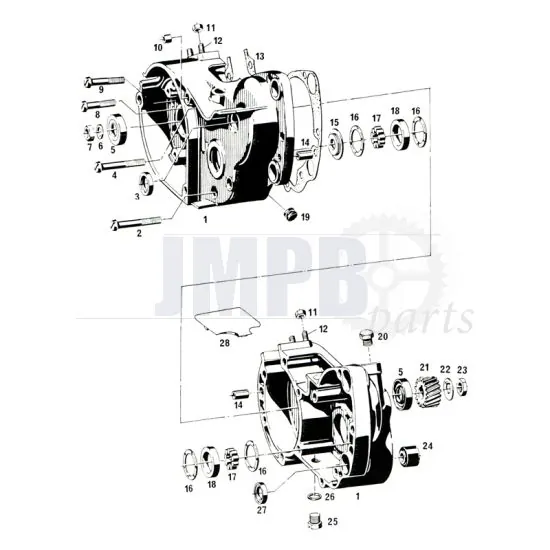

Crankcase Sachs 50/4 EKF

Be the first to review this product Be the first to review this product

Grouped product items
Product Name	Qty
1 - Crankcase set Sachs 50/4 EKF Crankcase set Left and Right Includes bushings for Kickstart and Secondary shaft For L17 bearings Fits on: Sachs 50/3 Sachs 50/4 EKF €245.00
2 - Engine bolts set Sachs 3/4 Gears Engine bolts set complete Sachs 3/4 Gears €19.95
3 - Seal Sachs 16X24X4 Seal Metal, single sided sealed 16X24X4 A piece Fits on: Sachs 50/2 Sachs 50/3 Sachs 50/4 Sachs 50/A Sachs 501 Sachs 502 Sachs 503 Sachs 504 Sachs 505 Sachs 506 Sachs 50S €2.95
5 - Seal Crankshaft Sachs 3/4 17X30X7 Seal Crankshaft 17X30X7 Double sealed Sachs 3 & 4 Gears Note, Sachs 3 Gears, only for the models with 17MM crankshaft spigot €2.95
6 - M10 Washer Galvanized Din 125A M10 Washer Galvanized Din 125A €0.08
10 - Bushing Crankcase Sachs 8.4X7.5MM Bushing / Dowel sleeve carter 8.4X7.5MM A piece Fits on: Sachs 50/3 Sachs 50/4 €2.49
11 - M6 Nut Galvanized Din 934 Nut M6 Galvanized Din 934 €0.04
12 - Cylinder Stud Sachs M6X26 Cylinder stud M6X25MM Sachs A piece €0.90
13 - Crankcase Gasket Sachs 2/3/4 Gears Crankcase gasket Fits on: Sachs 50/A Sachs 50/2 Sachs 50/3 Sachs 50/4 €4.95
14 - Bushing Crankcase Sachs 8.4X15MM Bushing / Dowel sleeve carter 8.4X15MM A piece Fits on: Sachs 50/A Sachs 50/2 Sachs 50/3 Sachs 50/4 €1.95
15 - Seal Front sprocket axle Sachs 503 - 14.96X31.50X3.5 Seal Front sprocket axle Sachs 503 Sachs 50/2 - models with membrane cylinder Size; 14.96 X 31.50 X 3.5MM €6.95
16 - Bearing Washer Sachs 16.5X31.5X1 Bearing washer for barrel bearings 16.5X31.5X1 A piece Fits on: Sachs 50/3 Sachs 50/4 €2.99
17 - Roller Bearing Sachs 4X6MM A Piece Barrel / Roller bearing Ø 4X6MM A piece Fits on: Sachs 50/3 Sachs 50/4 Sachs 506 €0.75
18 - Outer Race Barrel Bearing Sachs 3/4G Outer ring for cylinder roller bearing 23.5X31.5X6MM A piece Fits on: Sachs 50/3 Sachs 50/4 €5.50
21 - Clutch Housing with Gear Sachs 2/3/4G Clutch housing with gear Sachs / DKW 2, 3 & 4 speed Fits: Sachs 50/2 Sachs 50/3 Sachs 50/4 €69.95
22 - Securing Plate Primairy Gear Sachs Retainer plate For primairy gear A piece Fits on: Sachs 50/2 Sachs 50/3 Sachs 50/4 €1.95
23 - Hex nut Low M10X1.0 Galvanized Din 439B Hexagon nut Low M10X1.0 Galvanized Din 439B €0.95
24 - Engine block rubber 19MM Sachs Engine block rubber 19MM Sachs 8.6 X 19.4 X 19MM €4.50
25 - Drain Plug Sachs 2/3/4G M10X1 Oil drain plug M10X1 A piece Fits on: Sachs 50/2 Sachs 50/3 Sachs 50/4 €2.75
26 - Copper ring 10X16X1,5MM Din 7603A Copper ring 10X16MM Thickness 1,5MM Din 7603A €0.30
27 - Mounting Plate Engine Rubber Sachs Mounting plate for engine rubber 15.5X22.4X5 A piece Fits on: Sachs 50/2 Sachs 50/3 Sachs 50/4 €3.50
28 - Cover Crankcase Crescent F50 / Golden Champ Cover crankcase / carter Sachs Crescent F50 / Golden Champ €5.95
