Technical drawings, exploded views for Kreidler with five gears and indirect gears

In principle, the indirect gears of a Kreidler works without problems, but because a lot of it's work is located outside the engine block, there are also typical problems that can arise here. These often have to do with sand and dirt, which may increase wear and create play in the shifting mechanism. As a result, the moped no longer shifts 100 percent and it is time to replace worn parts.

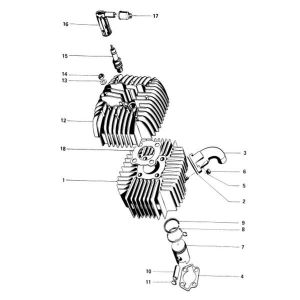

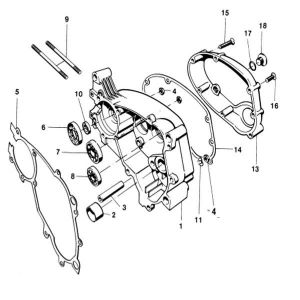

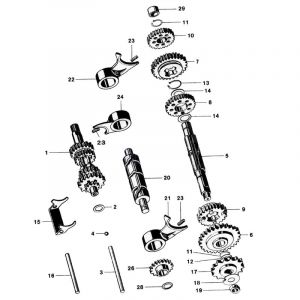

Technical drawings for engine block, crankcase, clutch and gearbox

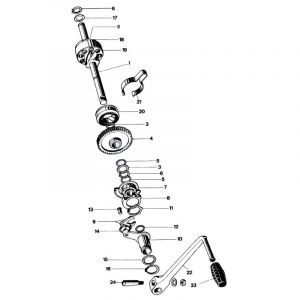

You will find all parts for your Kreidler moped with indirect transmission and kickstart in the JMPB Parts webshop. All parts are affordable, available from stock and shipped quickly. But which parts do you need for the work on your Kreidler? The technical drawings you will find here offer a solution. The exploded views provide a perfect overview of the parts, such as the engine , crankcase, clutch, gearbox and shifting mechanism. Drawings are also available for the kickstart.

Order Exploded views and parts for Kreidler online

Not only are the technical drawings that you find here indispensable in every workshop, to help you quickly, you can also order all parts directly online. Each part is numbered and the numbers correspond to the ordering module on the site. So you only have to look which part you need and state the number. We provide fast delivery so you never have to wait long for your parts!
