Exploded view drawings | Zundapp 529

Do you need technical information about the Zundapp 529? A schematic of all parts used for this classic moped? In our webshop you will find a complete overview of all technical drawings for the Zundapp 529. For each part an 'exploded view' drawing is available containing all the needed parts.
Zundapp 529 all parts in an overview
The Zundapp 529 is perhaps the most famous model of Zundapp and you still see them a lot with organized tours and during club days. The 529 was in fact the successor of the 517 and also shares a lot of technology with this model. According to many, the 529 looks better with its somewhat wider appearance. In terms of technology, there are not much surprises, but it can still be useful to have an overview of all parts that make up a component.
Order parts directly
To quickly answer the question of which parts you need to, for example, refurbish a gearbox or repair a swingarm, you will find several technical drawings here. Each drawing provides a schematic representation of all parts that make up a gearbox, swingarm or clutch and their position in the whole. At the same time you can order the right parts directly on the basis of these drawings!
- 01. Zundapp 529 3G Crankcase Left
Starting at €0.15
- 02. Zundapp 529 4/5G Crankcase Left
Starting at €0.65
- 03. Zundapp 529 Crankcase Right
Starting at €0.15
- 04. Zundapp 529 Cylinder MInitherm
Starting at €0.05

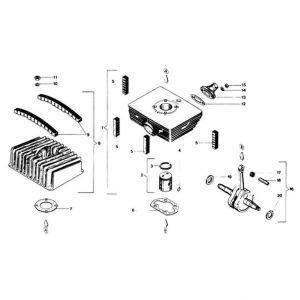

- 05. Zundapp 529 Cylinder Supertherm
Starting at €0.05
- 06. Zundapp 529 Gear box 3G Foot
Starting at €0.19
- 07. Zundapp 529 Gear box 4G Foot
Starting at €0.19
- 08. Zundapp 529 Gear box 5G Foot
Starting at €0.19
- 09. Kickstarter Zundapp 529
Starting at €0.25
- 10. Zundapp 529 Gear axle
Starting at €0.15
- 11. Zundapp 529 Clutch
Starting at €0.02
- 12. Ignition Old Type Zundapp 529
Starting at €0.08
- 13. Ignition New Type Zundapp 529
Starting at €0.08
- 15. Zundapp 529 Frame
Starting at €0.15

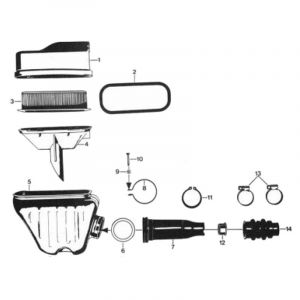

- 16. Zundapp 529 Airfilter house
Starting at €0.15
- 17. Zundapp 529 Engine mounting
Starting at €0.05

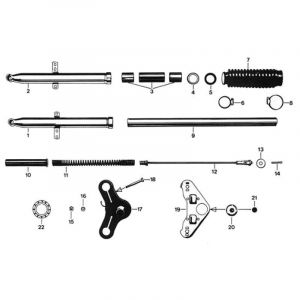

- 18. Zundapp 529 Front fork
Starting at €0.06
- 20. Zundapp 529 Swingarm / Closed Shock absorbers
Starting at €0.02
- 21. Zundapp 529 Swingarm / Open Shock absorbers
Starting at €0.02
- 22. Zundapp 529 Front wheel hub 120MM
Starting at €0.09
- 23. Zundapp 529 Front wheel hub 150MM
Starting at €0.09
- 24. Zundapp 529 Rear wheel hub 120MM
Starting at €0.08
- 25. Zundapp 529 Rear wheel hub 150MM
Starting at €0.15
