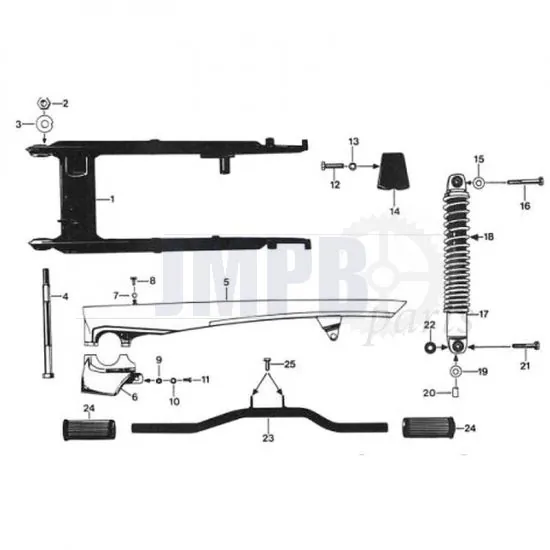

21. Zundapp 529 Swingarm / Open Shock absorbers

• Swing axle nut
• New type
• Galvanised
• Zundapp 529/530


• Securing plate for Swing axle
• Zundapp 529 / 530

• Swing axle
• Zundapp 529/530
• Galvanised
• New model
• Note, comes without nut
• Total length of the axle is 200MM
• Thickness of the axle at the thickening is 14MM

• Swingarm Axle
• Zundapp 529/530
• Stainless Steel
• New model
• Note, comes without nut
• Total length of the axle is 200MM
• Thickness of the axle at the thickening is 14MM

• Chainguard
• Zundapp new type
• Zundapp 529/530

  Note:
• B-quality, poor chrome / scratched
• For a better quality stainless steel chain guard see related products

Lock washer

• M6
• Stainless Steel
• DIN 6798A

Hex bolt.
M6X10
Galvanized
Din 933

• Nut M6
• Galvanized
• Din 934

M6 Spring washer Flat
Galvanized
Din 127

Pan Cylinder head screw Slotted.
Stainless Steel.
M6X12

• Hex bolt
• M8X35
• Stainless Steel
• Full thread
• Din 933

• M8 Washer
• Stainless Steel
• Din 125A

Hex bolt M8X60
Stainless Steel
Full thread
Din 933

• Shock absorbers
• Zundapp
• Open model
• Length from center till center is 315MM
• Diameter mounting holes 8MM

  Fitting for:
• Zundapp 517
• Zundapp 529


• A = 77MM
• B = 32MM
• C = 231MM
• D = 315MM
• E = 18MM
• F = 18MM


• See images for sizes



Hex bolt M8 X 40.
Stainless Steel.
Part thread
Din 931

• Footrest rubber
• With logo
• A piece


• Zundapp KS50
• Zundapp CS50
• Zundapp GTS50


• Total length 92MM
• Outer diameter 36MM
• Inner diameter 17MM

Hex bolt M8 X 20.
Stainless Steel.
Full thread
Din 933
