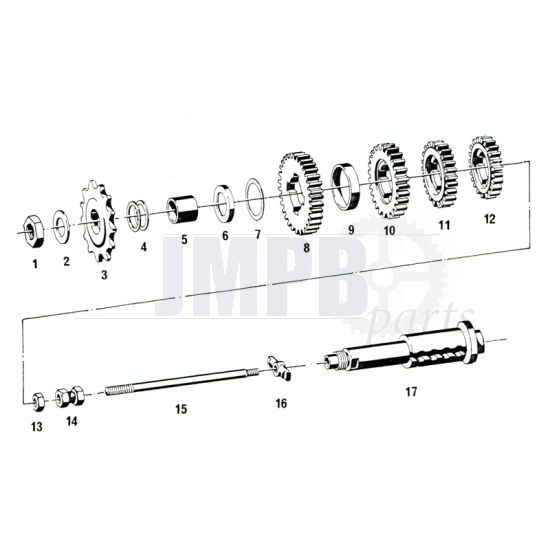

Main Shaft Sachs 50/4 EKF

Hexagon nut Low

• M12X1.0
• Galvanized
• Din 439B

• Washer front sprocket
• 12.3X22X1.5MM
• A piece

  Fits on:
• Sachs 50/3
• Sachs 50/4
• Sachs 504/1
• Sachs 505/1
• Sachs 506

• Front sprocket Sachs
• Model with oval hole ( 12X15MM
• Small 415 - 3/16
• 11 Teeth
  For;
• Sachs 504
• Sachs 505
• Sparta Lucky
• Hercules Prima

• Front sprocket Sachs
• Model with oval hole ( 12X15MM
• Small 415 - 3/16
• 12 Teeth
  For;
• Sachs 504
• Sachs 505
• Sparta Lucky
• Hercules Prima

• Front sprocket Sachs
• Model with oval hole ( 12X15MM
• Small 415 - 3/16
• 13 Teeth
  For;
• Sachs 504
• Sachs 505
• Sparta Lucky
• Hercules Prima

• Spacer / Bushing main axle
• 16X20X16MM
• A piece

  Fits on:
• Sachs 50/4

• Washer for main axle
• 15.6X27X3MM
• A piece

  Fits on:
• Sachs 50/4

• Bushing / Washer main axle
• 29X32X7MM
• A piece

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Nut M6
• Galvanized
• Din 934

• Nut for gear pin
• With slot
• M6 / SW12
• Foot gears

  Fits on:
• Sachs 50S
• Sachs 50/3
• Sachs 50/4

• Gearshift pin / Cotter pin axle / Gearshift rod
• Foot shifter 3 & 4 gears
• Length 118MM
• M5 thread (8MM)
• M6 thread (20MM)

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 CF (NL), DF (X)
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Gear Pin Lever
• M5x0.8
• Length 28.5MM

  For:
• Sachs 50/3
• Sachs 50/4

• Gearbox kit
• 9-Pieces
• 4-Gear / 4-Speed

  Set contains:
• Primary axle / Main drive shaft (0286 205 010)
• Selector shaft / Front sprocket axle (0285 108 007)
• 1st Gear wheel 31 (0234 113 000)
• 2nd Gear wheel 27 (0234 115 100)
• 3rd Gear wheel 24 (0234 114 000)
• 4th Gear wheel 22 (0234 104 100)
• Washers / Bushings

  Fits on:
• Sachs 50/4
