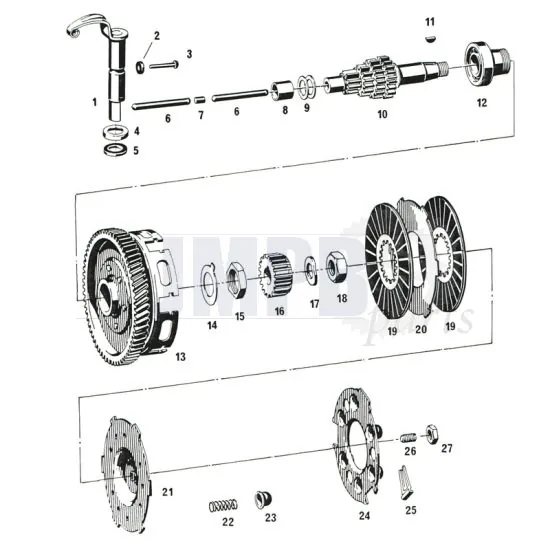

Clutch Sachs 50/4 EKF

• Clutch Arm
• Sachs 50/3 Footgear
• Sachs 50/4 Footgear

Clutch Arm complete

• Sachs 50/3 Footgear
• Sachs 50/4 Footgear



Set contains the following Sachs reference numbers;

• 0286 215 001

• 0660 002 000

• 0249 023 000

• 0246 012 000

• 0650 017 000

• 0249 104 000

• 0232 107 100

• Rubber ring notch nail clutch lever
• 3X10X2MM
• Per stuk
• Sachs

• Notch nail / Rivet for clutch lever
• 3X20MM
• A piece

  Fits on:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Protective cover for clutch arm seal
• A piece

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Seal
• For clutch lever
• 13X19X2.5

  A.o. for:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Pressure pin for clutch
• 51.8X4.8MM
• A piece

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Barrel / Roller for clutch pressure pin
• 4.5X6MM
• A piece

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Gearbox kit
• 9-Pieces
• 4-Gear / 4-Speed

  Set contains:
• Primary axle / Main drive shaft (0286 205 010)
• Selector shaft / Front sprocket axle (0285 108 007)
• 1st Gear wheel 31 (0234 113 000)
• 2nd Gear wheel 27 (0234 115 100)
• 3rd Gear wheel 24 (0234 114 000)
• 4th Gear wheel 22 (0234 104 100)
• Washers / Bushings

  Fits on:
• Sachs 50/4

• Woodruff / Flywheel key
• Kreidler
• Zundapp
• Puch


• See images for sizes



Identical to Kreidler article number
00.80.01
Identical to Zundapp article number
DIN6888-300
Identical to Sachs article number
0246 005 000

• Clutch bearing
• Diverse Sachs models
• Left threaded

• Clutch housing with gear
• Sachs / DKW 2, 3 & 4 speed

  Fits:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Retaining washer clutch
• A piece

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Nut for clutch bearing
• M20.8X1

  For a.o:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Hub for clutch

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Ruffled spring washer
• M12
• Galvanized
• Din 137B

Hexagon nut Low

• M12X1.0
• Galvanized
• Din 439B

• Clutch plate set
• Sachs 2/3/4 gears old model
• 2-pieces
• Diameter 94MM
• Thickness 3.7MM

• Clutch plate set
• Newfren
• A-Quality
• 2-Pieces
• Outer diameter Ø 94MM
• Inner diameter Ø 36MM
• Width 3.3MM

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Outer / intermediate clutch plate
• Inner diameter Ø 40.75MM
• Outer diameter Ø 94MM
• A piece

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Clutch pressure disc

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Clutch spring
• Sachs
• Length 20MM
• Outer diameter 8.5MM

• Clutch Pressure Spring Set
• Sachs 3/4 Gears
• Race

• Clutch spring cap
• Sachs

• Retainer clip clutch housing
• A piece

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Spring plate
• Inner diameter Ø 39MM
• Outer diameter Ø 90MM

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Adjusting screw with nut M6
• Clutch
• Sachs
