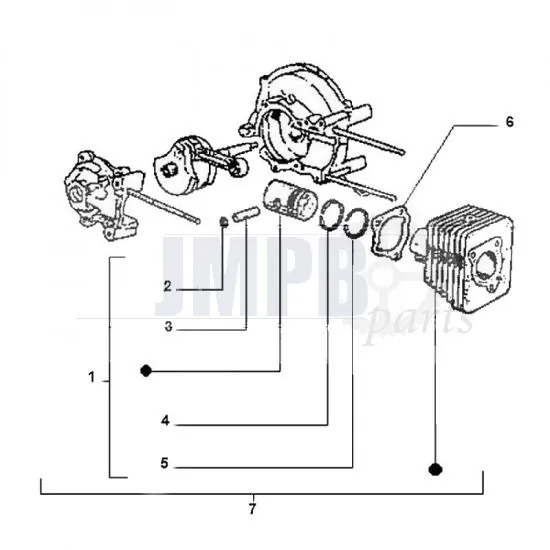

Exploded view drawing cylinder Vespa Ciao

Grouped product items
Product Name	Qty
1 - Piston 38.2MM Standard Pin 12 Vespa Piston for the original Cylinder of a Citta The diameter is 38.2MM Note! Piston pin is 12MM Fits on: Gilera Citta Vespa Ciao Vespa Si Vespa Bravo €14.95
1 - Piston 38.2MM Standard Pin 10 Vespa Piston for an original cylinder of a Citta The diameter is 38.2MM Piston pin is 10MM Fits on: Gilera Citta Vespa Ciao Vespa Si Vespa Bravo €10.95
2 - Piston pin clips 10MM 2 Pieces Piston pin clips 2 Pieces Fits on a 10MM piston pin €1.25
2 - Piston pin clips 12MM 2 Pieces Piston pin clips 2 Pieces Fits on a 12MM Piston pin €1.25
4 - Piston Ring Citta / Ciao 38.2 X 1.5C Piston ring standard model 38.2MM X 1.5 C Gilera Citta Vespa Ciao Vespa SI This ring is in the bottom hole €2.49
5 - Piston Ring Citta / Ciao 38.2 X L Piston ring standard model 38.2MM X L Gilera Citta Vespa Ciao Vespa SI This ring is in the upper hole €3.90
6 - Base gasket Citta/Ciao Big Base gakset big Fits on; Many 60 / 65CC cylinders Fast 50CC cylinders For; Gilera Citta Vespa Ciao Vespa SI Vespa Bravo €1.60
6 - Base gasket Citta/Ciao Standard Base gasket Standard Gilera Citta Vespa Ciao Vespa SI / Bravo €0.75
6 - Base gasket Citta/Ciao Aluminum Base gasket Aluminum. Gilera Citta Vespa Ciao Vespa SI €1.65
7 - 50CC Cylinder Citta/Ciao/Si Standard P10 Standard Cylinder 49CC. Bore 38.2MM Cylinder content 49CC Material Cast iron Connection exhaust 22MM Outer diameter cylinder skirt 46MM Piston pin 10MM Gaskets included? No Fits on; Gilera Citta Vespa Ciao Vespa Si Vespa Bravo Note, this cylinder has a skirt diameter of 46MM, does not fit on every carter, because some models are speed limited. This cylinder does not fit the following models: Vespa Ciao MIX 25KM Gilera Citta new model (with electric ignition) Vespa Ciao new model 25KM Vespa SI MIX 25KM Special Price €34.95 Regular Price €39.95
7 - 50CC Cylinder Citta/Ciao/Si Standard P12 Standard Cylinder 49CC. Bore 38.2MM Cylinder content 49CC Material Cast iron Connection exhaust 22MM Outer diameter cylinder skirt 46MM Piston pin 12MM Gaskets included? No Fits on; Gilera Citta Vespa Ciao Vespa Si Vespa Bravo Note, this cylinder has a cylinder skirt diameter of 46MM, does not fit on every carter, because some models are speed limited. This cylinder does not fit the following models: Vespa Ciao MIX 25KM Gilera Citta new model (with electric ignition) Vespa Ciao new model 25KM Vespa SI MIX 25KM €39.90
