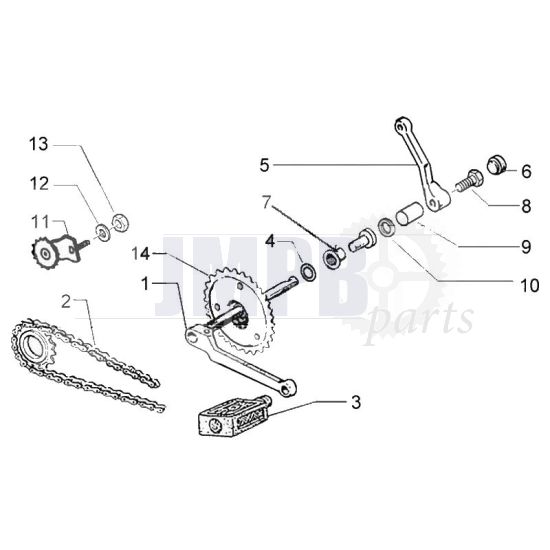

Exploded view drawing Cranks Vespa Ciao

Grouped product items
Product Name	Qty
2 - Pedal Start Chain Maxi/Ciao/Citta Pedal start chain Size: 1/2 X 1/8 / 112 Links Suitable for: Puch Maxi Vespa Ciao Gilera Citta Peugeot 103 Note, For Pedal start mechanism, This chain can't be used for a Vespa Ciao with kickstarter The chain can be adjusted to size using a chain tool €5.95
3 - Pedal set Vespa / Maxi Pedal set. Fits; Puch Maxi Gilera Citta Vespa Ciao Vespa SI €4.99
4 - Filler ring Crank Ciao/Citta/SI Filler ring Crank Vespa Ciao Gilera Citta Vespa SI Vespa Bravo €1.25
7 - Crank axle bushing Vespa Ciao Crank axle bushing Nylon A piece Vespa Ciao Inner diameter 16MM Outer diameter 21MM Length 15MM €1.60
10 - Filler Crank Vespa Bravo/SI/Grillo Filler Crank Fits on; Vespa SI Vespa Bravo Vespa Grillo €1.40
11 - Chain tensioner Vespa Ciao MIX Remake Chain tensioner Vespa Ciao MIX Remake €4.95	Out of stock
11 - Chain tensioner Vespa Ciao Chain tensioner / Bicycle chain Vespa Ciao ( Note, NOT Vespa Ciao Mix ) €6.50
12 - M8 Washer Galvanized Din 125A M8 Washer Galvanized Din 125A €0.05
13 - M8 Nut Galvanized Din 934 Nut M8 Galvanized Din 934 €0.07

14 - Crank axle Vespa Ciao PX 28 Teeth Crank axle Vespa Ciao PX 28 Teeth Total length 230MM Depending on the stock, the Crank axle comes with 4 or 5 spokes Note, the edge of the Crank axle can be slightly curved See images for sizes €21.50
