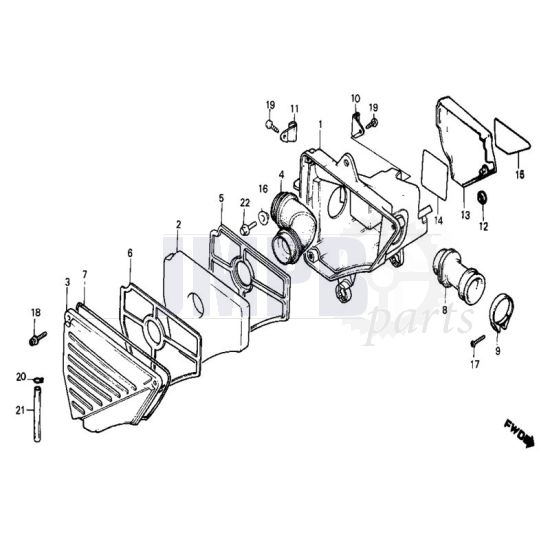

Exploded View Airfilter Honda MB50

Grouped product items
Product Name	Qty
1 - Airfilter House Honda MB/MT Airfilter House Battery Holder Without filter A-Quality Fitting for: Honda MB Honda MT €51.95
2 - Air filter element Honda MB/MT Air filter element Honda MB Honda MT €4.50
3 - Air filter lid Honda MB/MT Air filter lid A-Quality Fitting for: Honda MB Honda MT €24.95	Out of stock
4 - Hooked rubber in Air filter Honda MB/MT Hooked rubber in air filter Model with big hole Honda MB Honda MT €3.95
5 - Airfilter Rack Rearside Honda MT/MB Airfilter Rack Rearside Diameter inner hole 50MM See extra image, NR 5 Fits on; Honda MT50 Honda MB50 €7.25
6 - Airfilter Rack Frontside Honda MT/MB Airfilter Rack Frontside Diameter inner hole 38MM See extra image NR 6 Fits on; Honda MT50 Honda MB50 €7.25
8 - Inlet Funnel Carburettor/Filter 12-18MM Keihin Honda MB/MT Inlet funnel carburettor - Air filter For 12 > 18MM Keihin carburettors Inner diameter carb. connection ± 36MM Fits on: Honda MB Honda MT Honda MTX old model €2.75
9 - Clamp Airfilter Honda MT/MB/MTX/NSR Clamp airfilter Honda MT Honda MB Honda MTX Honda NSR €8.95
10 - Bracket Battery Strap Air Filter Box Small Honda MB/MT Bracket for air filter box Small model Support for battery clamping strap Fits on: Honda MB Honda MT €6.50
11 - Bracket Battery Strap Air Filter Box Large Honda MB/MT Bracket for an air filter box Large model Support for battery clamping strap Fits on: Honda MB Honda MT €6.50
12 - Grommet Batterylid Honda MB - Remake Grommet batterylid Remake Honda MB €0.45
13 - Battery Cover Honda MB Battery Cover Honda MB €19.95
14 - Sticker Battery instructions Honda MT/MB Sticker Battery instructions Honda MT/MB Black/White 45X60MM €3.95
15 - Sticker Air filter maintenance Honda MT/MB Sticker Luchtfilter onderhoud Honda MT/MB Zwart/Wit 104X48MM €4.95
17 - Cylinder screw Galvanized M5X30 Din 7985H Cylinder screw Galvanized M5X30 Din 7985H A piece €0.25
20 - Hose clamp Mini Galvanized 12-13MM Mini Hose clamp Reach 12>13MM Width 10MM Galvanized Maxxfast Type Mini W1 €0.99

21 - Fuel hose 8MM 1 Meter Fuel hose Inner diameter 8MM Outerdiameter 13MM Very thick hose Black 1 Meter €3.50
22 - Flange Screw Original Honda M6X14 Flange screw frame Original Honda M6X14 A piece Used on: Toolbox / Tool kit ( MT50 ) Air filter box ( MB50 ) €1.49
