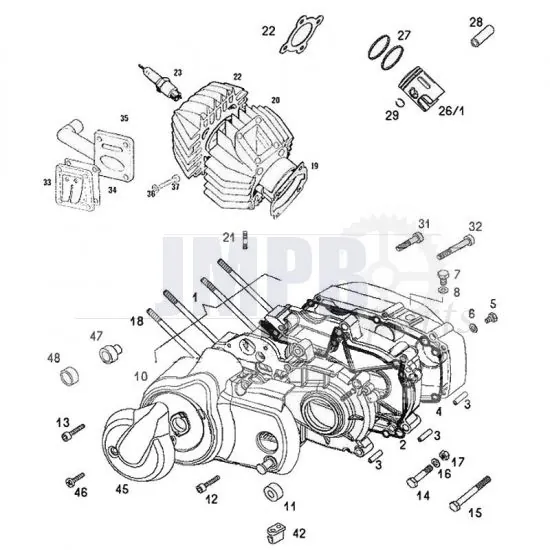

Exploded drawing Crankcase / Cylinder Tomos Flexer

Grouped product items
Product Name	Qty
2 - Crankcase Gasket Tomos A35 / A52 / A55 Crankcase gasket Tomos A35 / A52 / A55 €2.95
3 - Bushing Middle crankcase Tomos Bushing Middle crankcase Tomos Classic Tomos Fun Sport Tomos Quadro Tomos Flexer Tomos Standard Tomos Luxe Tomos Revival Tomos Youngst'R Tomos Streetmate Tomos Sport'R Tomos S25 €3.90
4 - Clutch lid gasket Tomos A35 NT Clutch lid gasket Tomos A35 New model From 2003 €2.95
5 - Oil Inspection Bolt Crosshead Tomos Oil Inspection bolt Crosshead See extra image Tomos Classic Tomos Quadro Tomos Flexer Tomos Luxe Tomos Revival Tomos Streetmate Tomos A3 Tomos A35 Tomos Standard Tomos Funtastic €0.20
6 - Oil Inspection bolt Copper ring Tomos Oil Inspection bolt Copper ring In side panel Tomos Classic Tomos Quadro Tomos Flexer Tomos Luxe Tomos Revival Tomos Streetmate Tomos A3 Tomos A35 Tomos Standard Tomos Funtastic €0.20
7 - Oil Filler / Draining Cap Tomos Oil filler / Draining cap Tomos Classci Tomos Quadro Tomos Flexer Tomos Luxe Tomos Revival Tomos Streetmate Tomos A3 Tomos A35 Tomos Standard Tomos Funtastic €0.20
8 - Oil Filler / Draining Cap Fiber Ring Tomos Fiber ring for the Oil filler / Draining cap See extra image Tomos Classci Tomos Quadro Tomos Flexer Tomos Luxe Tomos Revival Tomos Streetmate Tomos A3 Tomos A35 Tomos Standard Tomos Funtastic €0.20
11 - Stop rubber Kickstarter Tomos A35 Stop rubber Kickstarter Tomos A35 See images for sizes €0.99
12 - Allen bolt M6X35 Galvanized Din 931 Allen bolt M6 X 35 Galvanized Part thread Din 931 €0.28
13 - Allen bolt M6X40 Galvanized Din 912 Allen bolt M6X40 Galvanized Din 912 A Piece €0.30
14 - Engine bolt Engine mounting Tomos M8 X 1 X 90 Engine bolt Engine mounting Original Tomos M8 X 1 X 90 Note, this bolt has a thread M8X1, fine metric Tomos Standard Tomos Classic Tomos Flexer Tomos Fun Sport Tomos Luxe €1.50
15 - Engine bolt Engine mounting Tomos M8 X 1 X 80 Engine bolt Engine mounting Original Tomos M8 X 1 X 80 Note, this bolt has thread M8X1, metric fine See extra image Tomos Standard Tomos Taxxity Tomos Classic Tomos Revival Tomos Flexer Tomos Pack'R Tomos Streetmate Tomos A3 Tomos Funsport Tomos Youngst'R Tomos Funtastic Tomos S25 €1.50
16 - M8 Washer Galvanized Din 125A M8 Washer Galvanized Din 125A €0.05
17 - Locknut M8X1 Tomos Various Locknut M8X1 ( Metric fine ) Tomos various, Engine block bolts €0.40
18 - Stud Tomos A-Quality A Piece Stud Tomos A3/A35 A-Quality A Piece €0.99
19 - Base gasket Tomos A3/A35 Base gasket Tomos A3/A35 €0.90
20 - 50CC Cylinder Tomos A35 DMP Cast Iron DMP Cylinder Bore 38MM Content 50CC Material cast iron Piston pin 12MM Gaskets included? No For 25KM models Fits on; Tomos A35 Note, for Moped (45KM) order the piston with holes €39.99
21 - Intake / exhaust stud M6X35 Stud M6 X 40MM Usable for intake & exhaust €0.50
22 - 50CC Cylinder head Tomos A35 Black Cylinder head 50CC / 38MM Tomos A35 €37.50
23 - Sparkplug Bosch W7AC Sparkplug Bosch. Type W7AC ( W175T1 ) ( Matches with a NGK B6HS ) Short shaft €3.75
23 - Sparkplug NGK B6HS Sparkplug NGK Short shank. Type NGK B6HS €2.95
27 - Piston ring set 38MM X 1.5C DMP Tomos A35 Piston ring set 38MM 38X1.5C Tomos A35 €4.95
28 - Piston pin 12 X 30 MM Piston pin 12X30MM €2.99
29 - Piston pin clips 12MM 2 Pieces Piston pin clips 2 Pieces Fits on a 12MM Piston pin €1.25
31 - Allen bolt M6X25 Galvanized Din 933 Allen bolt M6X25 Galvanized Full thread Din 933 €0.25
32 - Allen bolt M6X65 Galvanized Din 912 Allen bolt M6X65 Galvanized Din 912 A Piece €0.35
33 - Membrane Standard - Puch Maxi / Tomos Membrane DMP / Standard For Polini 65CC cylinder Puch Maxi Tomos Membrane cylinders €7.95
34 - Membrane gasket Tomos A35 Membrane gasket Tomos A35 €0.99
35 - Manifold Tomos A35 15MM Manifold Tomos A35 Pass ± 14MM tot 15MM Connection carburettor 18MM €11.95
35 - Manifold Tomos 45KM / Oil pump Manifold For models with an Oil pump For Dellorto SHA carburettors 12MM / 45KM Versions Tomos Luxe E-Start Tomos Flexer Tomos Revival Tomos Quadro Tomos Youngst'R Tomos Standard Tomos Taxxity €31.50
36 - M5 Washer Galvanized Din 125A M5 Washer Galvanized Din 125A €0.04
45 - Lid flat Tomos Original Lid flat For left carter Tomos Various models without oil pump A.o; Tomos Classic XL Tomos Flexer Tomos Standard Tomos Youngst'R Tomos Luxe 25 Tomos Funtastic €10.95
45 - Oil pump lid Tomos Remake Oil pump lid Remake Various Tomos Models A.o; Tomos Classic XL Tomos Fun Sport Tomos Standard P Tomos Flexer Tomos Youngst'R Tomos Pack'R Tomos Quadro €6.95
46 - Cylinder screw Galvanized M5X30 Din 7985H Cylinder screw Galvanized M5X30 Din 7985H A piece €0.25
47 - Bearing bushing Big Start bendix Tomos Bearing bushing Big For the Start bendix See extra image For all Tomos models with electric start €19.95
48 - Bearing bushing Small Start bendix Tomos Bearing bushing Small For the start bendix See extra image For all Tomos modes with electric start €4.95
