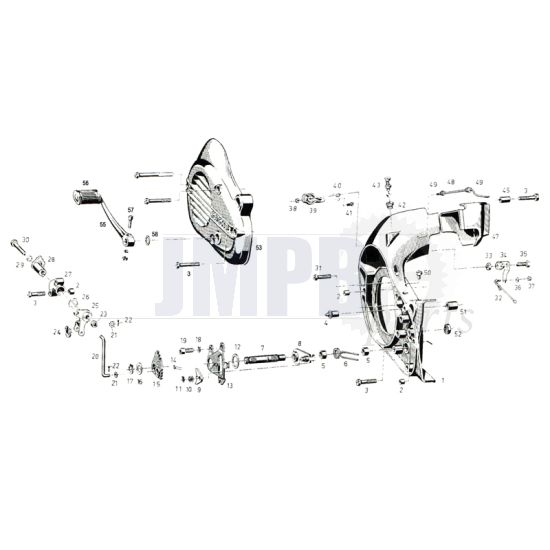

Cooling Covers Foot Gears Sachs 50/3

• Cooling fan housing / cover
• For models with forced cooling

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Bushing / Dowel sleeve carter
• 8.4X7.5MM
• A piece

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Locking pin with spring & cup
• Sachs 3/4 Gears
• Note, in some older models, the gap will have to be made bigger

• Bushing for gear change shaft
• 10X13X7.5
• A piece

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Torsion Spring Gear Mechanism
• Sachs 50/3 - 50/4

• Gear shift shaft
• For foot gears

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Locking lever for gear change shaft

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Gear shift pawl

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Gearshift Mechanism
• Complete kit
• 3 Speed foot gears

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS

• Small pawl spring
• Length 30MM

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Transmission lever
• Foot gears

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS

Circlip Axle
Size; 12MM.
Din 471

M6 Spring washer Flat
Galvanized
Din 127

Allen bolt M6X16.
Galvanized.
Din 912

• Transmission rod
• For foot gear

  Fits on:
• Sachs 50/3
• Sachs 50/4

M5 Washer
Galvanized
Din 125A

• Split pen
• 2X16
• Galvanized
• Din 94

• Nut M6
• Galvanized
• Din 934

• Shifting fork with shoe
• For foot gear

  Fits on:
• Sachs 50/3
• Sachs 50/4

• Shifting cog bearing

  Fits on:
• Sachs 50/3
• Sachs 50/4

•  Shifting cog for gear shift mechanism
• 3-Foot gears

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS

• Flange bolt Toothed
• Galvanized
• M6X45
• For wrench width 8MM
• A Piece

• Rod / Linkage for clutch mechanism

  Fits on:
• Sachs 50/3 L (S)
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Deflection lever for clutch mechanism

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

Hex bolt M6 X 16
Galvanized
Full thread
Din 933

• M3 Nut
• Galvanized
• Din 934

• Tickler lever for priming the carburettor
• For models with forced cooling

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Torsion spring
• For returning the float / prime lever
• For models with forced cooling

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Cylinder bolt
• M3X8
• Galvanized
• Din 84

• Cable adjuster bolt for clutch
• M10X1

  Fits on:
• Sachs 50/3 MLA (X, NL), MLB, LHX
• Sachs 50/3 MLKB, MLKA (X), LKH
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Cable adjustment screw
• M5 X 31
• universally applicable
• Total lenght 31MM
• Length thread 20MM

• Cooling fan housing / cover right side
• For models with forced cooling

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Prime linkage / float rod kit
• 4-pieces

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Seal
• Single sided sealed
• 10X16X4.5MM
• A piece

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4
• Sachs 50/A
• Sachs 501
• Sachs 502
• Sachs 503
• Sachs 504
• Sachs 505
• Sachs 506
• Sachs 50S

• Cooling fan housing cover
• For models with forced cooling
• Foot gears

  Fits on:
• Sachs 50/3 MLFB, LFH, LFS
• Sachs 50/4 LF (NL), MLFA (NL)
• Sachs 50/4 MLFB, MLKAX, LKS, LKH

• Gear pedal
• Chromed with rubber
• For 11MM axles

  Fits:
• Sachs 50/3
• Sachs 50/4

• Brakepedal / Kickstartpedal rubber

  Fits on:
• Sachs
• Hercules


• See images for sizes



• Bolt Gear pedal M5
• Sachs
