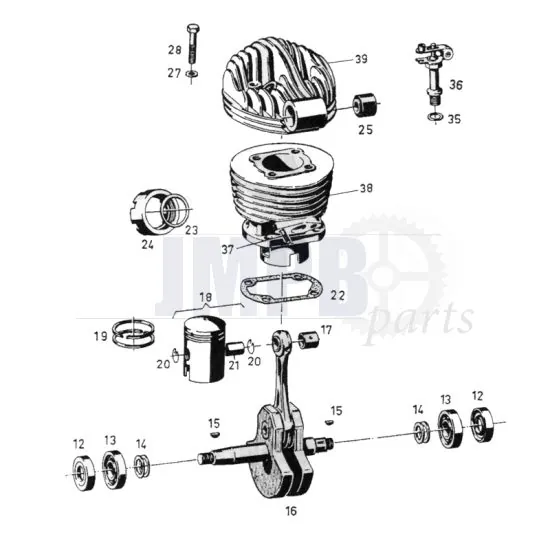

Cylinder / Crankshaft Sachs 50/2

• Seal set
• 6-Pieces
• For Hand geared / pedal engines

  Set contains:
• 2 Pieces 15X24X4
• 2 Pieces 15X30X7 Double sealed
• 25X31X4
• 12.96X31.5X3.5

  Fits on:
• Sachs 50/A
• Sachs 50/2

• Bearing E15
• NSK
• Brass Cage
• 3-Piece
• Per unit


• Inner diameter 15MM
• Outer diameter 35MM
• Width 8MM

• Woodruff / Flywheel key
• Kreidler
• Zundapp
• Puch


• See images for sizes



Identical to Kreidler article number
00.80.01
Identical to Zundapp article number
DIN6888-300
Identical to Sachs article number
0246 005 000

• Crankshaft
• Sachs 2 Gears
• Top Racing
• Diameter crankshaft spigot 15MM

• Needle bearing
• 12x15x15MM

  Fits on:
• Zundapp 3/4 Gears
• Puch Maxi
• Vespa models with piston pin 12
• Sachs

• Piston standard
• 38MM / Pin 12
• Sachs 50/2
• Sachs 50/3

• Piston
• Meteor
• Tolerance (A)
• 37.97MM
• Pin 12
• Sachs 504


• See images for sizes



• Piston ring Puch Maxi
• 38MM X 2 C ( Wide ring )
• Original Puch Maxi
• Note, some pistons use a 1.5mm piston ring
• A piece

• Base gasket + Exhaust ring 28 & 32MM
• Sachs 2/3/4 Gears

• Exhaust gasket / Ring
• Sachs
• 26MM

• Exhaust gasket / Ring
• Sachs
• 30MM

• Exhaust gasket / Ring
• Sachs
• 32MM

• Exhaust nut
• Sachs
• Thread M35X2
• For 28MM exhaust

• Silent-bloc rubber Cylinder head
• A Piece
• Sachs
• 8.5X15X19MM

M6 Washer
Galvanized
Din 125A

• Hex bolt.
• M6X30
• Galvanized
• Din 931

• Mounting kit cylinder head
• 8-Pieces
• Sachs

Copper ring 10X14MM
Thickness 1,5MM
Din 7603A

• Decompression plug / stop
• M10X1.5
• Fiber ring included

  Fits on:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Intake stud
• M5X20MM
• Sachs
• A piece

• Cylinder
• 50CC / 38MM
• Forced cooling Small model
• Piston pin 12MM
• With Piston
• Total Height cylinder 92MM
• Connection Exhaust Header M35X2
• Round intake
• Sachs

• Cylinder
• Air cooled (not for forced cooling)
• 50CC / 38MM
• Cast iron
• Reed valve intake
• Exhaust connection M35X2
• Piston pin 12MM
• Gaskets included? No
• 2.6HP Possible

  Set contains:
• Cylinder
• Piston
• Piston rings
• Piston pin
• Piston pin circlips

  Fits on:
• Sachs 50/A
• Sachs 50/3
• Sachs 50/4

• Cylinder
• Power One
• 50CC / 38MM
• Aluminum / Nicasil
• Suitable for air cooling
• Height from cylinder base 70MM
• Total height cylinder 85MM
• Square intake
• Diameter fins Ø 120MM
• Exhaust connection M40X1.5
• Piston included
• Piston pin 12MM
• Gaskets included? Yes

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Cylinder head
• 38MM / 50CC
• Forced cooling

  Fits on:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4


• See images for sizes


• Cylinder head
• For air cooled cylinders with reed valve intake
• 50CC / 38MM
• Dimensions: 135.5X104X59MM (Oval)
• With hole for decompression system

  Fits a.o:
• Sachs 50/2
• Sachs 50/3

• Cylinder head
• 38MM / 50CC
• Sachs Air-cooled

  For:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4
