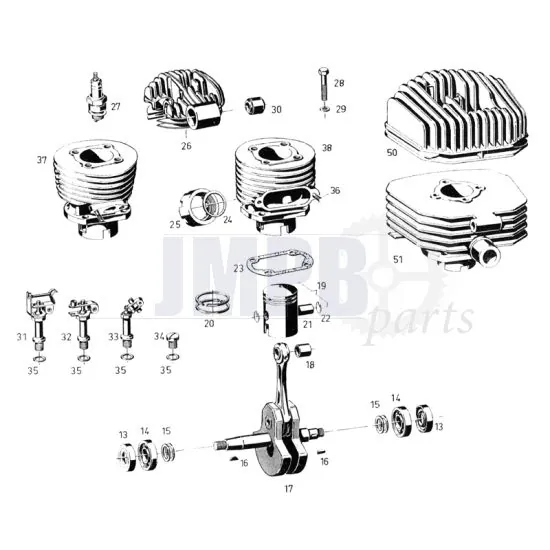

Cylinder / Crankshaft Sachs 50/3

• Seal Crankshaft
• 17X30X7
• Double sealed
• Sachs 3 & 4 Gears
• Note, Sachs 3 Gears, only for the models with 17MM crankshaft spigot

• Crankshaft bearing
• L17 NSK
• Brass cage
• Inner diameter 17MM
• Outer diameter 40MM
• Width 10MM

  For a.o:
• Puch 2/3/4 Gears
• Tomos 2L/3L/4L
• Sachs Foot gear

Shimring 17X24X0.1
Din 988

• Shimring 17X24X0.5
• Din 988
• A piece

• Woodruff / Flywheel key
• Kreidler
• Zundapp
• Puch


• See images for sizes



Identical to Kreidler article number
00.80.01
Identical to Zundapp article number
DIN6888-300
Identical to Sachs article number
0246 005 000

• Crankshaft
• Sachs 3 Gears
• Top Racing
• Diameter crankshaft spigot 17MM

• Needle bearing
• 12x15x15MM

  Fits on:
• Zundapp 3/4 Gears
• Puch Maxi
• Vespa models with piston pin 12



• Piston standard
• 38MM / Pin 12
• Sachs 50/2
• Sachs 50/3

• Piston ring Puch Maxi
• 38MM X 2 C ( Wide ring )
• Original Puch Maxi
• Note, some pistons use a 1.5mm piston ring
• A piece

• Piston pin clips
• 2 Pieces
• Fits on a 12MM Piston pin

• Base gasket
• Sachs 2/3/4 gears

• Exhaust gasket / Ring
• Sachs
• 26MM

• Exhaust gasket / Ring
• Sachs
• 30MM

• Exhaust nut
• Sachs
• Thread M35X2
• For 28MM exhaust

• Exhaust nut
• Sachs
• Thread M40X1.5
• For 32MM exhaust

• Cylinder head
• 38MM / 50CC
• Forced cooling

  Fits on:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4


• See images for sizes


• Cylinder head
• For air cooled cylinders with reed valve intake
• 50CC / 38MM
• Dimensions: 135.5X104X59MM (Oval)
• With hole for decompression system

  Fits a.o:
• Sachs 50/2
• Sachs 50/3

• Cylinder head
• 38MM / 50CC
• Sachs Air-cooled

  For:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

Sparkplug NGK

• Short shank.
• Type NGK B6HS

Sparkplug NGK

• Short shank
• Type NGK B7HS

Sparkplug NGK

• Short shaft.
• Type NGK B8HS

• Mounting kit cylinder head
• 8-Pieces
• Sachs

• Hex bolt.
• M6X30
• Galvanized
• Din 931

M6 Spring washer Flat
Galvanized
Din 127

• Decompressor

  Fits on:
• Sachs (504 / 505)
• Sparta
• Batavus
• Hercules

• Decompression plug / stop
• M10X1.5
• Fiber ring included

  Fits on:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Copper ring
• To use for banjo Bolts Brake
• A piece

• Intake stud
• M5X20MM
• Sachs
• A piece

• Cylinder
• 50CC / 38MM
• Piston pin 12MM
• With piston
• Total Height cylinder 84MM
• Squared intake
• Connection exhaust bend M40X1.5
• Sachs 3/4 Gears

• Cylinder
• Power One
• 50CC / 38MM
• Aluminum / Nicasil
• Suitable for air cooling
• Height from cylinder base 70MM
• Total height cylinder 85MM
• Square intake
• Diameter fins Ø 120MM
• Exhaust connection M40X1.5
• Piston included
• Piston pin 12MM
• Gaskets included? Yes

  Fits on:
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Cylinder
• Air cooled (not for forced cooling)
• 50CC / 38MM
• Cast iron
• Reed valve intake
• Exhaust connection M35X2
• Piston pin 12MM
• Gaskets included? No
• 2.6HP Possible

  Set contains:
• Cylinder
• Piston
• Piston rings
• Piston pin
• Piston pin circlips

  Fits on:
• Sachs 50/A
• Sachs 50/3
• Sachs 50/4

• Cylinder
• 50CC / 38MM
• Cast iron
• Reed valve intake
• Exhaust connection M35X2
• Piston pin 12MM
• Gaskets included? No
• 2.6HP Possible

  Set contains:
• Cylinder
• Piston
• Piston rings
• Piston pin
• Piston pin circlips

  Fits on:
• Sachs 50/A
• Sachs 50/2
• Sachs 50/3
• Sachs 50/4

• Cylinder
• 50CC / 38MM
• Cast iron
• 40KM/H inscription on cylinder base
• Exhaust connection M40X1.5
• Intake connection Ø 25MM
• Piston pin 12MM
• Gasket included? No
• 5.8HP possible

  Set contains:
• Cylinder
• Piston
• Piston rings
• Piston pin
• Piston pin circlips

  Fits on:
• Sachs 501
• Sachs 50 S
• Sachs 50/4


• See images for sizes
