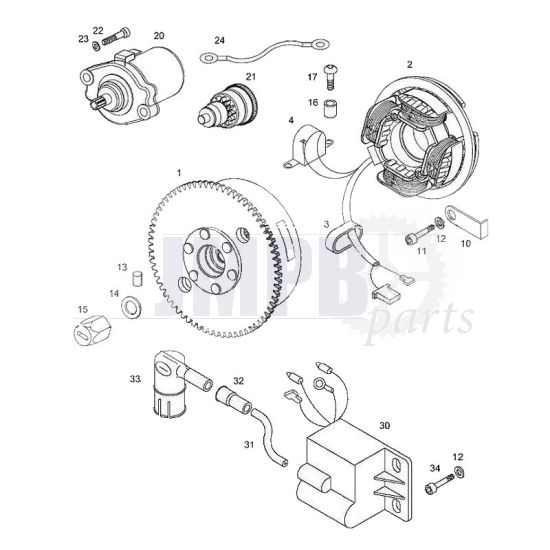

Exploded view drawing ignition with pick up Tomos

Grouped product items
Product Name	Qty
2 - Ignition Tomos A35 With Pick-Up Stator / Ignition Model with pick up Suitable for the following Tomos models; Tomos Classic XL Tomos Fun Sport Tomos Flexer Tomos Luxury Tomos Youngst'R Tomos Revival Tomos Street Mate Tomos Standard Tomos Luxury See images for sizes €39.50
3 - Ignition Grommet Tomos A35 Grommet Ignition Tomos A35 €4.95
10 - Bracket for ignition wires Tomos Bracket for ignition wires Tomos Classic Tomos Quadro Tomos Youngst'R Tomos Standard Tomos Luxe Tomos Revival Tomos Flexer Tomos Pack'R Tomos Funtastic Tomos Flexer €3.50
11 - Allen bolt M5X16 SS Din 912 Allen bolt M5X16 Stainless Steel Din 912 €0.22
12 - M5 Washer Galvanized Din 125A M5 Washer Galvanized Din 125A €0.04
13 - Woodruff / Flywheel key Tomos 3X5 Woodruff / Flywheel key See extra image Tomos all models. Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A3 Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro €1.95
15 - Nut Crankshaft / Oil pump Drive Tomos Nut Oil pump Drive See extra image All Tomos models with Oil pump €17.95
16 - Spacer Pick-Up Tomos Spacer For Pick-Up See extra image Tomos ignition A piece Tomos Classic XL Tomos Fun Sport Tomos Flexer Tomos Luxe Tomos Youngst'R Tomos Revival Tomos Streetmate Tomos Standard Tomos Luxe €2.75
17 - Cylinder screw Galvanized M6X25 Din 7985H Cylinder screw Galvanized M6X25 Din 7985H A Piece €0.25
20 - Start Engine Tomos E-Start 11 Teeth Start engine 11 Teeth Fits on: Tomos Quadro E-Start Tomos Revival Tomos Pack'R Tomos Streetmate Tomos Luxe E-Start Tomos Flexer €19.95
20 - Starter Engine Tomos E-Start 10 Teeth Starter engine 10 Teeth Fits on: Tomos Quadro E-Start Tomos Revival Tomos Pack'R Tomos Streetmate Tomos Luxe E-Start Tomos Flexer €25.00
21 - Start Bendix Tomos E-Start Start Bendix Tomos models with electric start o.a Tomos Quadro E-Start Tomos Revival Tomos Pack'R Tomos Streetmate Tomos Luxe 25 E-Start €19.95
22 - Allen bolt M6X20 Galvanized Din 912 Allen bolt M6X20. Galvanized. Din 912 €0.22
23 - M6 Spring washer Flat Galvanized Din 127 M6 Spring washer Flat Galvanized Din 127 €0.02
24 - Ground cable Start motor Tomos Ground cable start motor Tomos Quadro Tomos Flexer Tomos Luxe E-Start Tomos Revival Tomos Funsport Tomos Streetmate Tomos Funtastic €1.50
30 - Coil / CDI Tomos A35 Model with Pickup Coil / CDI Unit Tomos A35 electronic ignition For models with Pickup Tomos Classic XL Tomos Fun Sport Tomos Flexer Tomos Luxe Tomos Youngst'R Tomos Revival Tomos Streetmate Tomos Standard Tomos Luxe €24.95
31 - High Tension sparkplug cable - 7MM 50cm High tension sparkplug cable 7mm in thickness ± 50cm in length Is used for external coils €0.90
33 - Sparkplug cap NGK LB05F Spark plug cap NGK Black Type LB05F 5K Ohm resistor Usable for; Zundapp Kreidler Puch Yamaha Gilera Citta / SI Vespa Ciao Tomos €4.50
34 - Cylinder screw Galvanized M5X12 Din 7985H Cylinder screw Galvanized. M5X12. Din 7985H €0.15
