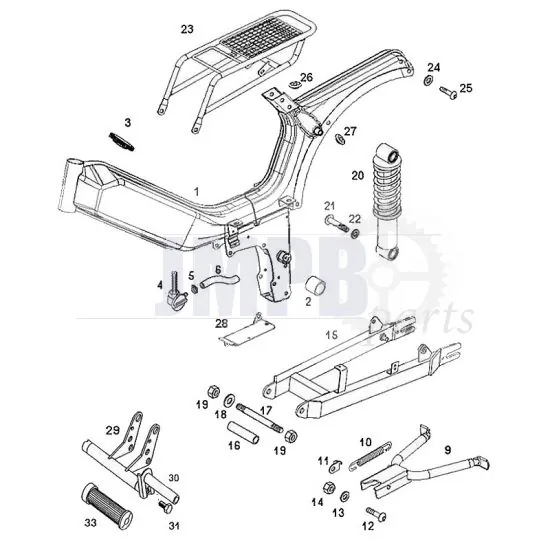

Frame / Swingarm Tomos Standard

• Tank cap
• With lock
• Bayonet fitting
• Chromed


• Tomos Classic XL
• Tomos Quadro
• Tomos Standard
• Tomos Flexer / Bayonet fitting
• Tomos Youngster / Bayonet fitting
• Tomos Luxe
• Tomos A3
• Tomos A35


• See images for sizes

• Tank cap
• Bayonet fitting
• Chrome
• Tomos Classic XL
• Tomos Quadro
• Tomos Standard
• Tomos Flexer / Bayonet fitting
• Tomos Youngster / Bayonet fitting
• Tomos Luxe
• Tomos A3
• Tomos A35


• See images for sizes

• Fuel cock
• Model with plastic lever
• Tank connection: M12X1.00
• Hose connection: 5/6MM
• Pass: 3MM
• 3 positions: Open, Reserve, Closed

  Fits on:
• Tomos A3
• Tomos A35
• Tomos Classic
• Tomos Revival
• Tomos Streetmate
• Tomos Flexer
• Tomos Youngst'R
• Tomos Funtastic
• Tomos Pack'R

• Fuel cock
• Tomos A3 / A35
• Tank connection: M12X1.00
• Hose connection: 4.5/5.5MM
• Pass: 3MM
• 3 positions: Open, Reserve, Closed

• Clamping Spring Fuel hose 8MM.
• Reach 8.5 > 9.3MM.
• A Piece.

• Fuel hose
• Black
• 1 Meter
• 5X8

• Centre stand
• Tomos A3 / A35
• Weighted model
• Black


• See images for sizes


• Centre stand
• Black
• Tomos A3/A35
• See images for sizes

• Centre stand spring
  Fits on;
• Tomos A3
• Tomos A35
• Tomos Standard
• Tomos Flexer
• Tomos Luxe
• Tomos Classic
• Tomos Youngst'r
• Tomos revival
• Tomos Streetmate
• Tomos Quadro

• Bracket for Stand spring
• Tomos A3 / A35
• Flexer
• Funtastic
• Revival
• Youngst'r

• Engine bolt Engine mounting Tomos
• Original Tomos
• M8 X 65
• See extra image
• Tomos Standard
• Tomos Taxxity
• Tomos Classic
• Tomos Revival
• Tomos Flexer
• Tomos Pack'R
• Tomos Streetmate
• Tomos A3
• Tomos Funsport
• Tomos Youngst'R
• Tomos Funtastic
• Tomos S25

M8 Washer
Galvanized
Din 125A

• Nut M8
• Galvanized
• Din 934

• Swingarm
• Black
• Tomos A3/A35
• A-quality

  Note:
• Shock absorber eyes are about an inch further forward than the original. No problem up to 280MM shock absorbers, for longer ones the side covers must be adjusted


• See images for sizes

• Swingarm
• Chromed
• Tomos A3/A35

  Note:
• Shock absorber eyes are about an inch further forward than the original. No problem up to 280MM shock absorbers, for longer ones the side covers must be adjusted


• See images for sizes

• Ring 13MM
• Front wheel axle
• Swingarm axle
• Tomos


• See extra images

• Nut Swingarm Axle
• See extra image
• A Piece
• Tomos Classic
• Tomos Flexer
• Tomos Quadro
• Tomos Luxe
• Tomos Standard
• Concerns an M12 nut, this can be different per type of Tomos.

• Set Shock absorbers
• Black / Chrome
• Length 280MM
• IMCA
  Suitable for;
• Puch Maxi
• Gilera Citta
• Puch Magnum X
• Tomos A35
• Mounting holes 10MM


• A = 135MM
• B = 40MM
• C = 135MM
• D = 280MM
• E = 19MM
• F = 19MM


• See images for sizes

• Shock absorbers set DMP
• Length 280MM ( Centre to centre )
• Diameter mounting holes 10MM
• Outer diameter spring 44MM
• Outer diameter bottom leg 28MM
• Chrome
  Usable for;
• Gilera Citta ( Higher than the original )
• Puch Maxi
• Tomos


• A = 110MM
• B = 40MM
• C = 163MM
• D = 280MM
• E = 18MM / Bushing 21MM
• F = 17MM / Bushing 21MM


• See images for sizes

• Shock absorbers set DMP
• Length 280MM ( Centre to centre )
• Diameter mounting holes 10MM
• Outer diameter spring 44MM
• Black
  Usable for;
• Gilera Citta ( Higher than the original )
• Puch Maxi
• Tomos


• A = 110MM
• B = 40MM
• C = 163MM
• D = 280MM
• E = 18MM / Bushing 21MM
• F = 17MM / Bushing 21MM


• See images for sizes

• Flange bolt
• For mounting Tomos Shock absorbers
• M10X35
• A Piece

M10 Washer
Galvanized
Din 125A

• Rear carrier
• Black
• Tomos A35
• Tomos Standard
• Tomos Luxe
• Tomos S25
• Tomos Taxxity
• Tomos Quadro

• Rear carrier Black
• For models with Oil tank
• Tomos Standard
• Tomos Luxe
• Tomos Quadro

• Rear carrier with bar
• Black
• Tomos A35
• Tomos Standard
• Tomos Luxe
• Tomos S25
• Tomos Taxxity
• Tomos Quadro

M6 Washer
Galvanized
Din 125A

• Flange bolt M6X16
• A Piece
• Fits on;
• Side panel Tomos Standard
• Rear carrier Tomos

• Rubber Side cover
• Tomos
• Can be used as grommet for the oil sensor cable


• See extra images


• Footrests set
• Tomos A3 / A35

• Flange bolt
• M10X25
• For mounting Tomos Footrests
• A Piece

• Footrests rubber set
• Per 2 pieces
• Tomos Classic
• Tomos Fun Sport
• Tos Flexer
• Tomos Luxe
• Tomos Revival
• Tomos Youngst'R
• Tomos S25
• Tomos Standard
• Tomos Quadro
• Tomos A35
• Tomos A3
• Tomos Funtastic
