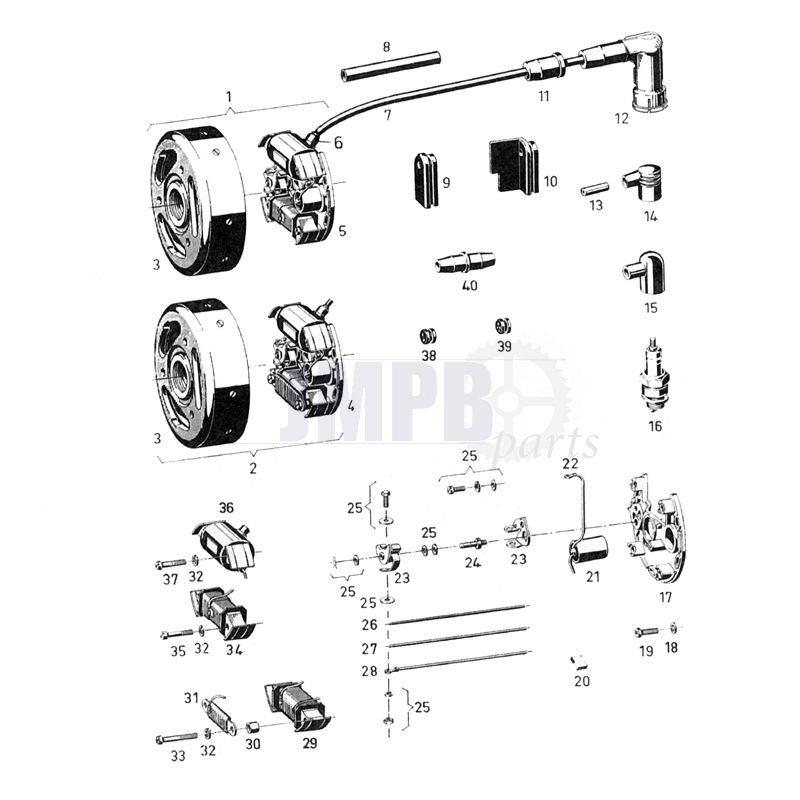

Ignition Sachs 50/3

• Contact ignition complete
• Counter clockwise
• Model like Bosch (Remake)
• 6 Volt 15/5 Watt
• Flywheel included
• Extra 3 Watt coil included
• Outer diameter base plate Ø 90MM
• Yellow wire = 15W Headlight
• Green wire = 5W Brake light
• Gray wire = 3W Tail light
• Black wire = Stopper

  Set contains:
• Flywheel
• Base plate
• Ignition coil
• Light coil
• Extra 3W coil
• Point set
• Condenser
• Grease felt
• Sparkplug cable

  Fits a.o.:
• Kreidler
• Zundapp
• Puch
• Sachs
• Tomos 2/3/4L, A3 Old model


• See images for sizes

• Flywheel
• Model Bosch
• Turns Counterclockwise
• Contact points ignition

  Fits a.o.:
• Kreidler
• Zundapp
• Puch Monza
• Puch VS50 from +/- 1960
• Puch MS50(V) from +/- 1960
• Puch DS50
• Puch VZ50
• Puch MC50
• Puch MV50
• Puch Z50 / ZA50
• Puch Dakota
• Puch Florida
• Puch Alabama
• Tomos 2L
• Tomos 3L
• Tomos A3 old model


• See images for sizes

• Contact ignition
• Model like Bosch ( Remake )
• Includes extra coil 3 Watt ( Small light )
• 6 Volts 5/15W
• Without flywheel
• Outer diameter Base plate: 90MM
• Inner diameter Base plate: 18MM
• Zundapp / Kreidler / Puch

  Connection

• Black wire = Stopper
• Yellow wire = Headlight and Taillight
• Green wire = Brake light
• Grey or brown wire = Assistance coil - to Taillight up to 3 watts

• Contact ignition
• Model like Bosch (Remake)
• 6 Volt 17 Watt
• Without flywheel
• For Bosch / Iskra flywheel with inner diameter ± 90.50MM
• Outer diameter base plate Ø 90MM
• Yellow wire = Headlight and Taillight
• Black wire = Stopper

  Set contains:
• Base plate
• Ignition coil
• Sparkplug cable
• Light coil
• Point set
• Condenser
• Grease felt

  Fits a.o.:
• Kreidler
• Zundapp
• Puch
• Tomos 2/3/4L, A3 Old model

• Grommet
• For Bosch coil
• For 5MM Sparkplug cable
• Kreidler

Sparkplug cable Thin 5MM.
Length 190CM

For a Bosch spark coil.

• Insulating sleeve
• PVC
• Inner diameter 5MM
• To use on wire trees
• 3 meter set



• Cable grommet sparkplug cable
• Foot shift models
• Sachs 50/3 NL, C (NL), D

• Cable grommet sparkplug cable
• Sachs 50/3LFS

• Sparkplug cap
• Model as BERU
• Metal
• Suppressed 1K ohm

  To use for:
• Zundapp
• Kreidler
• Puch

Sparkplug NGK

• Short shank
• Type NGK B7HS

• Sparkplug Denso
• Type: W22FS-U
• Short Shaft

  Matches:
• NGK B7HS
• Bosch W5AC

Sparkplug NGK

• Long shank
• Type NGK B7ES

• Base plate
• Bosch Ignitions

  Fitting for:
• Puch
• Zundapp
• Kreidler
• See images for sizes


M4 Washer.
Galvanized.
Din 125A

• Lens bolt
• M4X12
• Galvanized
• Din 966

Felt / Measurement enough for any model, even for adjust to the right size

• At condenset our base plate
• Puch
• Zundapp
• Kreidler
• Vespa
• Gilera
• Yamaha
• Size ± 20X20MM

• Condenser
• Original Bosch
• With screw
  Height: 32MM
  Diameter: 18MM
• Zundapp
• Kreidler
• Puch

• Condenser
• Solder
• Original Bosch
  Height: 25MM
  Diameter: 18MM
• Zundapp
• Kreidler
• Puch

Contact set

Contact set.

• Bolt & Spring washer
• For mounting the contacts
• Puch
• Zundapp
• Kreidler

• Light coil
• Model BOSCH
• Type with two wires
• 6V
• 5W / 15W

  Fits on;
• Zundapp
• Kreidler
• Puch


• See images for sizes

• Spacer for an extra coil
• Bosch ignitions
• Per piece

  Fits a.o.:
• Kreidler
• Zundapp
• Puch
• Sachs
• Tomos 2/3/4L, A3 old model


• See images for sizes



• Assistance Coil for Bosch ignition
• Wire of this coil can be directly connected to the Taillight to prevent burning out.
• 6 Volt / 3 Watt
• Zundapp
• Kreidler
• Puch


• See images for sizes

M4 Spring washer Flat
Galvanized
Din 127

• Cylinder screw
• Galvanized
• M4X20
• Din 7985H

• Light coil
• Model Bosch
• 6 Volt / 15 Watt
• Single thread

  Fits on:
• Puch
• Zundapp
• Kreidler


• See images for sizes

Cylinder screw Galvanized.
M4X25.
Din 7985H

• Spark coil
• Model with a wider coil core for the optimal pick-up of the magnetic field
• Model as Bosch
• Center distance mounting holes 54MM
  Usable for;
• Kreidler
• Zundapp
• Puch

Cylinder screw Galvanized.
M4X20.
Din 7985H

• Cable grommet
• 2 Holes
• Sachs

• Cable grommet
• 4 Holes
• Sachs
